ROOF TILE NIVERNAISE

Clay roof tile
Roof tile with two suspension burling and nail holes.
Colour: rustic red
Also available in dark rustic - rustic ash colour.

cross-wise placement
Weight per piece : 1,2 kg.
Format : 16 x 27 cm.
Number per m² : 59,5 st. ( depending on batten spacing) .
Theoretical batten spacing : from 90 to 100 mm.

( technical brochure and description available on demand )

ROOF TILE PHALEMPIN

Clay roof tile
Tile with two suspension burlings and two nail holes.
Colour : rustic ( dark ) - amarant
Also available in volcan ( rustic bordeaux ) - amber - red - chaume ( straw colour ) .

Cross-wise placement
Weight per piece : 1,3 kg.
Format : 17 x 27 cm.
Number per m² : 59,5 st. ( depending on batten spacing ) .
Theoretical batten spacing : from 90 to 100 mm.

( technical brochure and description available on demand )

H 10

Clay roof tile
Slightly wavy roof tile with double side and single head lock.
Colours: Slate colour - rustic
Also available in red and brown.

Rectilinear placement
Weight per piece: 4,3 kg.
Number per m² : 10,2 ( depending on batten spacing )
Theoretical batten spacing : from 312 mm. to 388 mm.

( technical brochure and description available on demand )

H 2

Clay roof tile
Slightly wavy roof tile with double side and double head lock.
Colours: Slate - rustic
Also available in red - brown - red engobe.

Rectilinear placement
Weight per piece : 3,2 kg.
Number per m² : 14
Theoretical batten spacing : 360 mm.

( technical brochure and description available on demand )

REGENCE

Clay roof tile
Flat roof tile with double side and double head lock.
Colours : Double black and rustic.
Also available in red and brown.

Croww-wise placement
Weight per piece : 2,3 kg.
Number per m² : 20
Theoretical batten spacing : 271 mm.

( technical brochure and description available on demand )

BRUEGEL / RUBENS: OVH ROOF TILE

Clay roof tile
Heavily wavy roof tile ( Flemish model ) with single side and double head lock.
Colours: double black - braised blue - rustic - glazed matt black.
Also available in fall colour - natural red - dark brown - red engobe - rustic red - copper red - rust colour B/C - rustic glazura - bronze glazura - braised richly coloured blue - rust colour glazura .
Also availbale in glazed matt black - raven - extra dark brown - wine red - blue.

Rectilinear placement
Weight per piece : 2,6 kg.
Number per m² : 15,5
Theoretical batten spacing : 312 mm.

( technical brochure and description available on demand )

BREITNER / RUYSDAEL : VH ROOF TILE

Clay roof tile
Heavily wavy roof tile ( Flemish model ) with double side and double head lock.
Colours: rustic - shiny glazed black - glazed matt black - double black - braised blue.
Also availbale in fall colour - natural red - glazed matt black - raven - extra dark brown - wine red - blue - purple.

Rectilinear placement
Weight per piece : 2,6 kg.
Number per m² : 15,5
Theoretical batten spacing : 312 mm.

( technical brochure and description available on demand )

OVH - PLUS

Clay roof tile
Heavily wavy roof tile ( Flemish model ) with single side and single head lock.
Colours : derated blue
Also available in double matt black and satinet ( black ) - rustic - copper red - red.

Rectilinear placement
Weight per piece : 3,7 kg.
Number per m² : 12,35
Theoretical batten spacing : 346 mm.

( technical brochure and description available on demand )

LA PLAT

Clay roof tile
Flat tile with double side and single head lock.
Colours : red - double black ( black )

Cross-wise and rectilinear placement.
Weight per piece : 4,4 kg.
Number per m² : 10,33
Theoretical batten spacing : variable between 375 mm. and 395 mm.

( technical brochure and description available on demand )

FLAT ROOF TILE S9

Clay roof tile
Flat tile with double side lock and variable hidden head lock.

Rectilinear or cross-wise placement.

Weight per piece : 3,7 kg.
Number per m² : 9,2 piece
Theoretical batten spacing : between 36 and 40 cm.

Available colours :
natural red - red brown engobe - brown engobe - old black engobe - matt grey engobe - satin etched precious engobe.

(technical brochure and description available on demand)

HOLLOW ROOF TILE WITH LOCK H14

Clay roof tile

Roof tile of the hollow type with double hidden side and single head lock.

Rectilinear placement
Weight per piece : 3,20 kg.
Number per m² : 13,90 piece
Theoretical batten spacing : 33,20 cm.

Colours:
natural red - red brown engobe - brown engobe - old black engobe - bordeaux red satin etched precious engobe - black satin etched precious engobe - black glazed - night blue glazed - grass green glazed.

(technical brochure and description available on demand)

HOLLOW ROOF TILE WITH LOCK H10

Clay roof tile.

Roof tile of the hollow type with hidden double side and single head lock.

Rectilinear placement
Weight per piece : 4,20 kg.
Number per m² : 10,30 piece
Theoretical batten spacing : 38,20 cm.

Colours:
natural red- red brown engobe - brown engobe - old black engobe - bordeaux red satin etched precious engobe - black satin etched precious engobe - black glazed - grass green glazed.

(technical brochure and description available on demand)

FLACHDACHPAN F10

Roof tile of the slightly wavy type with double side and double head lock.

Rectilinear placement.
Weight per piece : 4,20 kg.
Number per m² : 10 piece
Theoretical batten spacing : 42 cm.

Colours:
natural red - red brown engobe - brown engobe - old black engobe - black satin etched precious engobe - blue satin etched precious engobe - pine green satin etched precious engobe - black glazed - grass green glazed - azure glazed.

(technical brochure and description available on demand)

CONCRETE ROOF TILES NELSKAMP

Concrete roof tile

Quickly tiling roof tile with double side lock consisting out of micro concrete. The tile is homogenously coloured in the mass based on metal oxides.

Colours: slate grey - antique - black - natural red - prestige - fall colour - bordeaux - copper brown - red brown - dark brown - old red - middle grey - moss green- blue - granite black - Holland red.

Rectilinear placement
Weight per piece : 4,3 kg.
Number per m² : 9,7
Theroretical batten spacing : 345 mm. by 75 mm. overlap .

( technical brochure and description available on demand)

FLACHDACHPAN F15

Roof tile of the slightly wavy type with double side and double head lock.

Rectilinear placement
Weight per piece : 3,20 kg.
Number per m² : 14,50 piece
Theoretical batten spacing : 34,70 cm.

Colours:
natural red - manganese brown - red engobe - copper brown engobe - wine red engobe - slate black engobe - brown engobe - old coloured engobe - old coloured rustic engobe - red rustic engobe .

(technical brochure and description on demand)

HOLLOW ROOF TILE WITHOUT LOCK

Clay roof tile.

Roof tile of the hollow type without lock.

Rectilinear placement.
Weight per piece : 2,50 Kg.
Number per m² : 16,50 piece
Theoretical batten spacing : 31 cm.

Colours: braised blue - rrustic red - natural red - black engobe .


(tecnical brochure and description available on demand)

FLAT ROOF TILE G10

Clay roof tile

Flat roof tile with double side and single head lock.

Rectilinear or cross-wise placement.

Weight per piece : 4,3 kg.
Number per m² : 10 piece
Theoretical batten spacing : 39,60 cm.

Available colours :
natural red- red brown engobe - brown engobe - old black engobe - matted grey engobe - antique engobe - satin etched precious engobe .

(technical brochure and description available on demand)

BEAUVOISE

Clay roof tile.

Flat tile with double side and double head lock.

Colours :
Black - terre de Beauce (rustic straw colour) - rustic (rustic red)

Cross-wise placement.
Weight : 2,20 kg.
Number per m² : 20,50 pieces
Theoretical batten spacing : 244 mm.

(technical brochure and description available on demand)

STORM ROOF TILE

Clay roof tile.

Slightly wavy roof tile, small model, with double side and double head lock.

Colours:
Anthracite black - rustic red - red - amarant - antique .

Rectilinear placement
Weight per piece : 2 kg.
Number per m² : 22
Theoretical batten spacing : 237 mm.

(Technical brochure and description available on demand)

FLACHDACHPAN

Clay roof tile.

Slightly wavy rood tile, big model, with single side and double head lock.

Colours:
Natural red - copper engobe - light brown - brown engobe .

Rectilinear placement.
Weight per piece : 3 kg.
Number per m² : 15 pieces
Theoretical batten spacing : 339 mm.

(technical brochure and description available on demand)

WAVY ROOF TILE DS5

Clay roof tile.

Roof tile of the slightly wavy type with double side and single head lock and variable batten spacing.

Rectilinear spacing.

Weight : 5,40 kg. per piece
Number per m² : 6 pieces
Theoretical batten spacing : between 44 and 50,90 cm.

Colours: natural red - red brown engobe - brown engobe - old black engobe - satin etched black precious engobe .

(samples and technical brochure available on demand)

HP 13

Clay roof tile.

Flat roof tile with double side and singel head lock.

Colours:
Slate - rustic - red.


Cross-wise placement.
Weight per piece : 3,70 kg.
Number per m² : 13,5 8 pieces (depending on batten spacing) .
Theoretical batten spacing : between 255 mm. and 325 mm.

(technical brochure and description available on demand)

HP 10

Clay roof tile.

Flat roof tile with double side and single head lock.

Colours:
Slate - rustic - red - brown - pierre de Lauze (grey)


Cross-wise placement.
Weight per piece : 4,30 kg.
Number per m² : 10,2 pieces (depending on batten spacing) .
Theoretical batten spacing : between 310 mm. and 376 mm.

(tehcnical brochure and description available on demand)

ROOF TILE 17 X 26 CM. RUSTIC RED

Extruded roof tile.

Colour: rustic red

View: smooth surface. In orde to attach the tile there are two connecting pieces foreseen at the back of the tile as well as two nail holes.

Format : 17 x 26 cm. (57 pieces/m²)

(samples and description available on demand)

ROOF WINDOW

Metal rust-proof roof windows produced according to the ancient tradition. Available with single our double glass. Also available: oeuil-de-boeuf (round ancient modelled roof windows- and wall anchors of the same high quality.

Interested? Don’t hesitate to contact us for more information. Please also inquire whether your project is feasible!

HALF ROUND RIDGE WITHOUT LOCKING

Half round ridges without locking, fitting for ancient models. Baked according to the ancient tradition from 200 years ago.

Format: 4 piecs per running meter.

Always available from our stock!

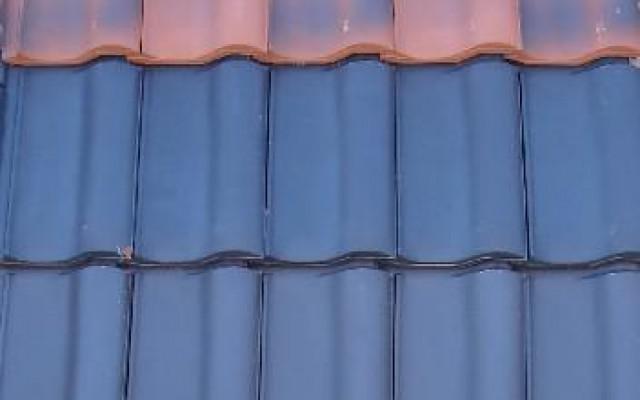

Also available in braised blue on demand. (see picture below)

BRAISED BLUE RIDGES WITHOUT LOCKING

Half round ridges without locking, matching with ancient models. Baked according to the ancient tradition of 200 year ago.

Format: 4 pieces per running meter

Always available in demand!

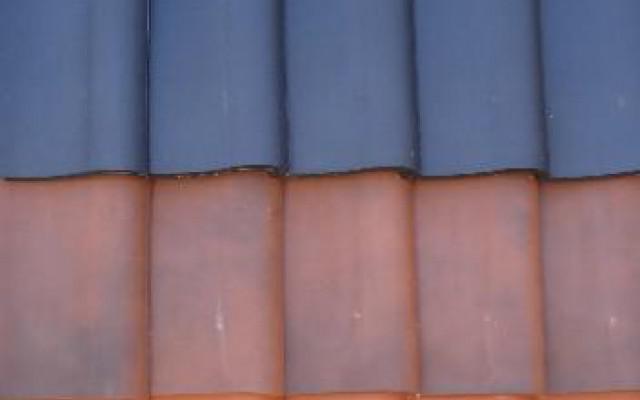

Always available from our stock is the red rustic version (see image below).

GLAZED ROOF TILES

Glazed clay roof tiles.

Format : 16x27 cm. (62,5 pieces/m² at a batten spacing of 10 cm.).

Colour : Available in several colours.

On demand only!
